Technology

The VelRay X by Accelerated Filtration is a notable technology in the field of total suspended solids (TSS) filtration. The VelRay X utilizes a unique and innovative filtration process that sets it apart from traditional methods. Here are some key features and advantages of the VelRay X system:

Advanced Filtration Mechanism:

The VelRay X employs a proprietary filtration process that combines high-efficiency mechanical filtration with advanced automated cleaning mechanisms. This allows for continuous operation without the need for frequent manual intervention, ensuring high reliability and performance.

High Throughput and Efficiency:

The system is designed to handle high flow rates and significant TSS loads, making it suitable for demanding industrial applications and challenging water and wastewater streams. It efficiently removes suspended solids to achieve high-quality effluent.

Compact and Modular Design:

VelRay X features a compact and modular design, making it easy to integrate into existing systems and scalable to meet varying capacity requirements. Its small footprint is advantageous for installations where space is a premium.

Low Operating Costs:

The advanced automated cleaning system minimizes downtime and reduces maintenance requirements. This, combined with its efficient filtration process, results in lower operational costs compared to traditional filtration technologies.

Versatility and Adaptability:

The VelRay X can be used in a variety of applications beyond hydraulic fracturing, including municipal water treatment, industrial wastewater treatment, and wastewater reuse. Its adaptability to different water qualities and conditions makes it a versatile solution.

The unique combination of these features makes the VelRay X an unmatched option for TSS filtration in various demanding applications. It offers a blend of high efficiency, low maintenance, and operational cost savings, making it a compelling choice for industries seeking advanced filtration solutions.

*Originally designed for Salt Water Disposal Wells.

• Consistent filtration over extended range of variable TSS up to 10,000mg/L

• Filtration down to 20 micron nominal

• New filter screen in development for ultra fine removal

• Flow rate of 400gpm for a single unit

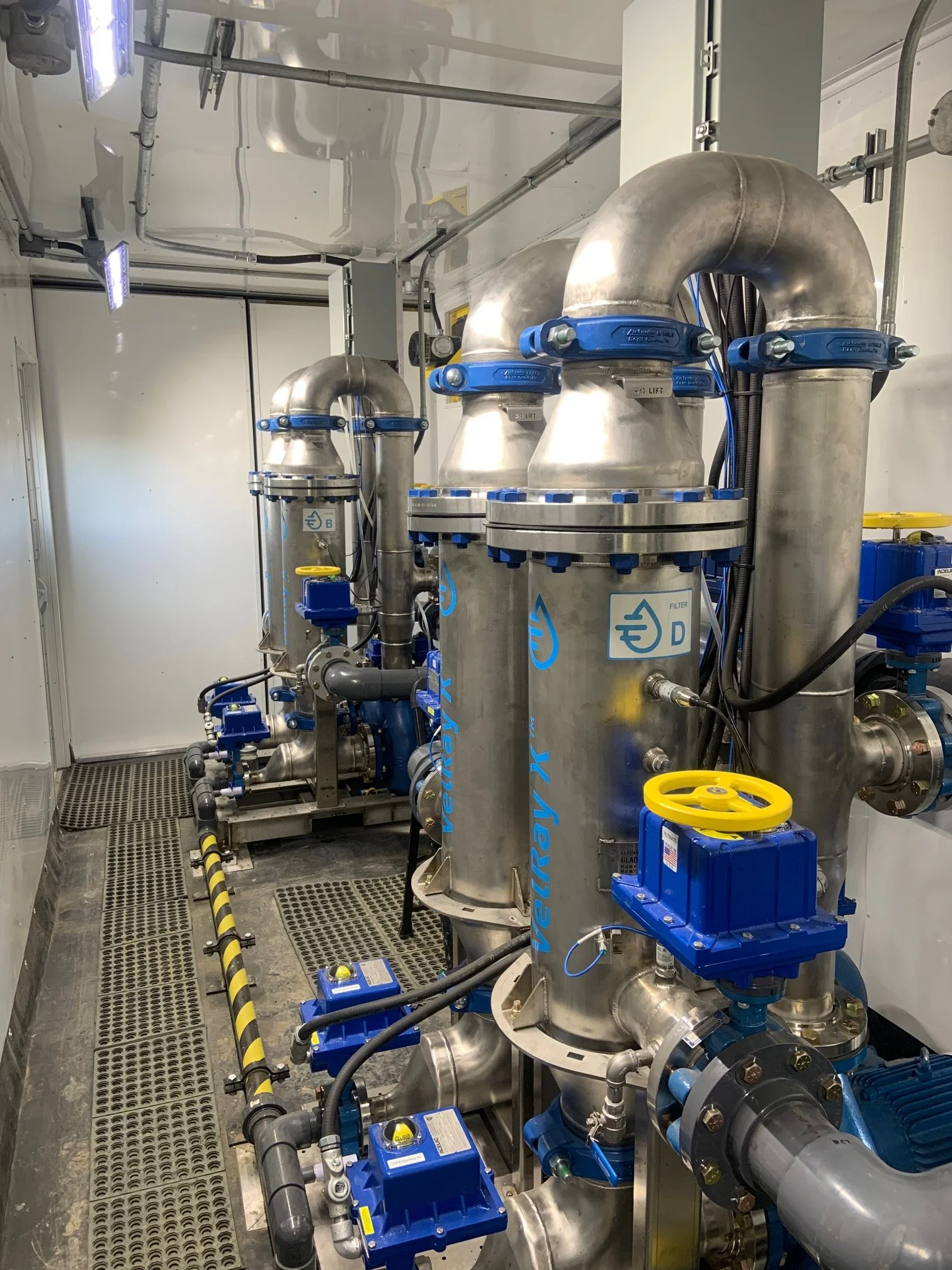

• NEW Double housing unit offers 800gpm on the same 3’x5’ skid.

• Operates in the presence of organics, invasive species and, fats, oils, and grease,

• Continuous filtration flow during operation

• Up to 99% water recovery

• Simple and straight forward operation and maintenance

• Energy efficient process

• Scalable and modular configurations

• All NSF-61 compliant materials

• Automated control system

• Industrial Ethernet communication / Profinet

• Intuitive touch screen interface

• Integrated 7.5HP drive pump

• Optional integrated feed pump

• Full stainless steel construction options

• UL-listed control components

• ASME U Stamp

• Vessel CRN #

• Customizable skid options available, including hazardous location classification
